How many tuning car enthusiasts have been caught by the mere 15A?
Spending thousands of dollars to replace the secondary battery, installing a dual power isolator, and busy wiring all day, finally discovered that the car refrigerator couldn't be operated, the air pump would jump off protection after a while, and the charging head was so hot that it could fry eggs.
The problem often lies not in the battery or the device, but in the seemingly inconspicuous' plug '.

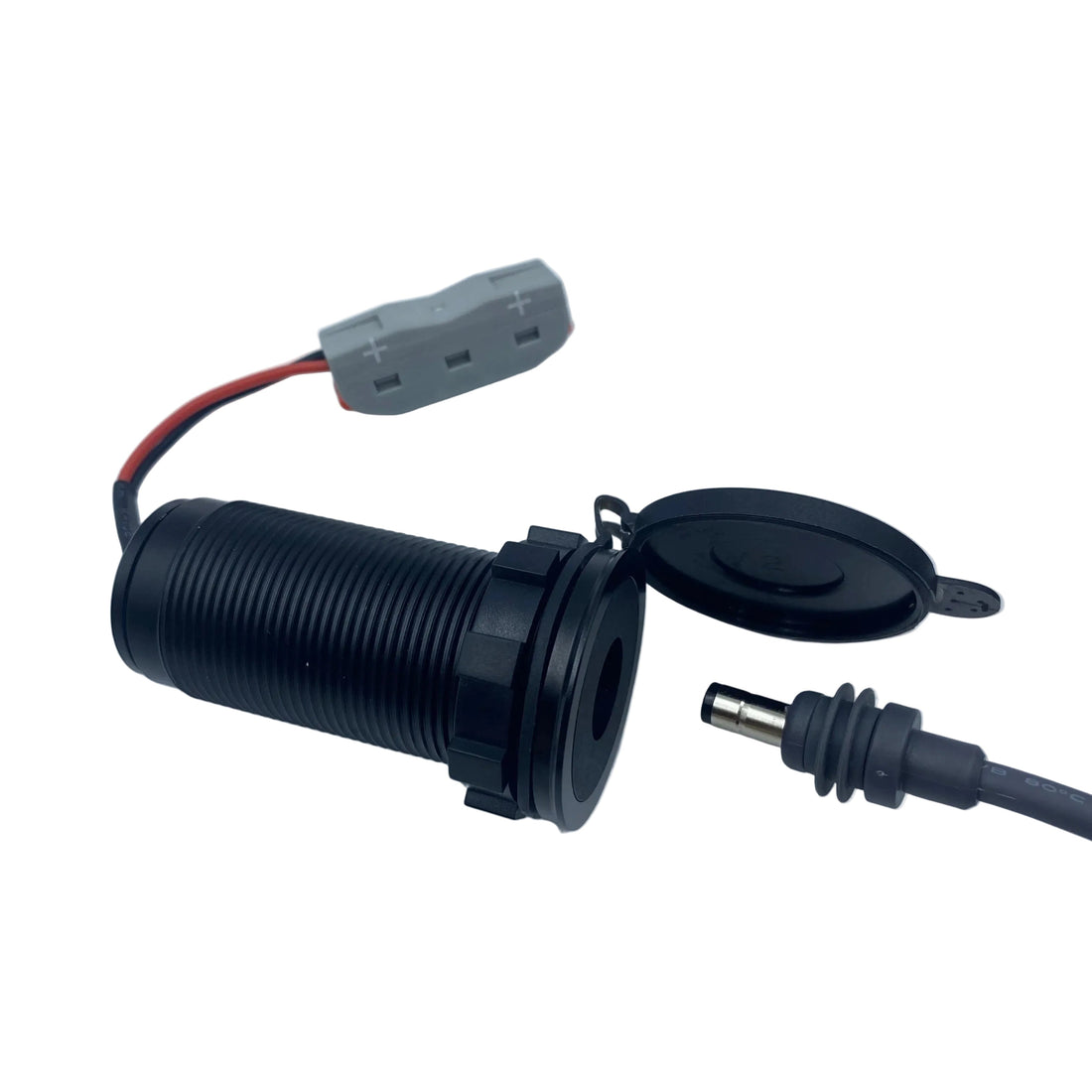

The original cigarette lighter interface was not designed to allow you to continuously carry high-power loads from the beginning. 10A、15A， That's the margin reserved for charging the phone and lighting a cigarette, not for continuous long-distance use with a 50W refrigerator. The little thing we're talking about today is specifically designed to "lift the table": Anderson SB50 plug to embedded waterproof car cigarette lighter female holder (threaded installation version).
🔋Let's talk about the gray one first: Anderson SB50, the "universal language" of the high current world
Friends who play RVs, bed bikes, and energy storage are no strangers to Anderson plugs. Gray, thick, with anti misoperation design, can only be pulled out by pressing both sides - this is the SB50 50A high current connector.
It is not designed for mobile phones, but for 12V/24V DC high current scenarios. You can frequently see its presence in places such as battery piles, high-power output ports for outdoor power sources, and combiner boxes for solar panels. The reason is simple: it can stably pass 50A current.
The intention of placing SB50 at the input end of this adapter cable is very clear - to directly take power from the energy storage core and bypass the fine hair like cigarette lighter harness of the original car. The internal wire diameter of ordinary cigarette lighter extension cords is usually only 0.5mm ² or even thinner, resulting in high wire loss, large voltage drop, and fast heating when running high currents. And Anderson interface, combined with thickened cables, directly removes the "power bottleneck" from the plug end.
You don't have to worry about the battery anymore - "There is electricity, but it can't be taken out.
👁️ Speaking of the black one: threaded embedded waterproof cigarette lighter female seat, "permanent workstation" on the panel
The other end is much more familiar - the standard car 12V/24V cigarette lighter female holder.
But it's not the cheap adapter that sways over the cigarette lighter. Upon careful observation, the black body features a threaded nut structure, indicating that it is a panel mounting component.
On the side panel of the RV cabinet, under the center console of the off-road vehicle, next to the yacht dashboard, and even on the wooden control panel made by the bed car, make a hole of the corresponding size, pass it through, tighten the nut - it will be firmly fixed there, becoming the "native" configuration of the vehicle, no longer a dragging line.
⛰️The more crucial details are hidden outside: dustproof and waterproof rubber flip cover.
What are you most afraid of in outdoor scenes? Opening windows for ventilation on rainy days can cause water to splash in; On the water crossing section, sediment mixed with moisture invades the inside of the socket; Camping overnight, dew condenses in the morning. After the flip cover is closed, it can effectively prevent liquid water from directly entering the contact points, providing the most basic protection against damp and splashing scenes. It's not meant for you to soak in water, but in rainy days, riverbanks, and humid environments, this protection is much more secure than bare sockets.
✅ What practical problems does it solve?
If you have a 12V car refrigerator with a nominal power of 45W, the normal working current is about 3.75A. However, the current will surge to 7-8A or even higher when the compressor starts. Insert it into the original car's cigarette lighter, and it can barely run for short distances. But if you run continuously for a whole day, the cigarette lighter harness will be in a high load state for a long time, accumulate heat, and the fuse will age, and one day it will "pop" and break in the wilderness.
💡Replace with this set of adapters:
Anderson output port for battery or outdoor power supply → plug in gray SB50 connector.The black female seat is fixed on the convenient panel inside the car.Refrigerator/air pump/high-power charging head → Insert into standard cigarette lighter hole.
The entire wire diameter is thick enough, the connection impedance is low enough, and the 50A margin makes it impossible for any cigarette lighter device you bring to reach its upper limit. The only truly limited factor is the power demand of the device itself, rather than the inherently inadequate interface.
👉Who should consider it the most?
1.Bedding/camping players: When parking, they rely on the auxiliary battery for power supply. The original car's cigarette lighter needs to be wired from the main battery, and if not careful, it will lose power and fail to ignite. Use this adapter to directly take power from the Anderson output of the secondary battery, ensuring complete isolation and peace of mind.
2.RV modification enthusiasts: There is a demand for 12V sockets next to cabinets and headboards, which can be directly installed through boards, clean and beautiful, much fresher than hanging a bunch of adapter cables.
3.Off road/wading scenario users: The waterproof flip cover is designed to handle mud splashes and short-term rain, making it more suitable for harsh road conditions than ordinary exposed female seats.
4.Yacht/ship users: Salt spray environment causes severe corrosion of contacts. Covering with a dust cover can at least slow down the oxidation rate, and threaded installation can also ensure that the panel opening is stable and not shaking.
🛠️ A practical installation reminder.Finally, practical points to note:
1. Reverse polarity connection: The Anderson connector itself has a foolproof design, but the center of the cigarette lighter female seat on the other end is the positive pole (+), and the outer spring is the negative pole (-). Be sure to confirm the polarity of the battery output when wiring, as reversing the polarity may burn the equipment.
2.Wire gauge matching: Since the SB50 interface is used, connecting wires require at least 6AWG (approximately 13mm ²) or thicker pure copper wire to achieve a current carrying capacity of 50A. Don't use thin wires to match large connectors, that's self deception.
3.Fuse saving: Install a suitable specification fuse at the positive terminal of the battery (recommended to select according to 1.25-1.5 times the actual load), which is the most basic electrical safety bottom line.
4.Check the flip cover frequently: Rubber parts will age and harden after long-term exposure to sunlight. Regularly check the sealing and replace them if cracks are found. Don't regret it until water enters and short circuits occur.
Ultimately, the essence of modification is to 'remove shortcomings'
The original cigarette lighter is designed for "universal convenience" and is not responsible for your high-power refrigerator and high flow air pump. But when your electricity demand exceeds the surplus reserved by the original factory, you need to use professional solutions to make up for this shortcoming.
Anderson SB50 is responsible for "smoothly guiding electricity out", and the threaded waterproof cigarette lighter female seat is responsible for "installing a durable home in the car". The combination of the two is an "energy transfer line" that makes retrofitting electricity refreshing, safe, and worry free.
Don't let the 15A current limit ruin your long-awaited camping trip next time.
