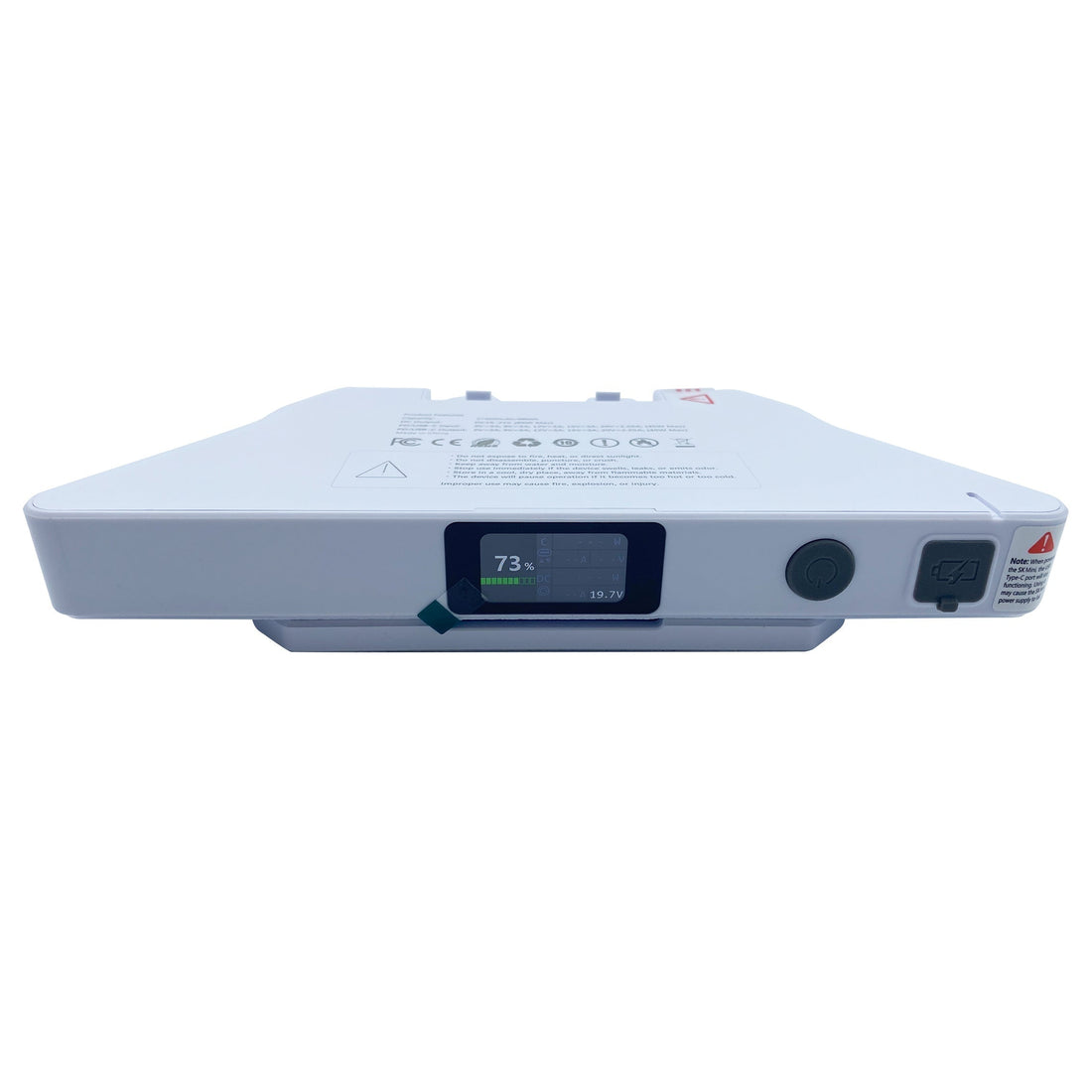

For Starlink Mini exclusive energy storage power supply ensures uninterrupted outdoor internet connection!
🔋.Product Overview
This portable energy storage power supply is equipped with high safety grade lithium battery cells, with large capacity, fast charging speed, and a compact and lightweight body, making it easy to carry around. It can stably supply power to Starlink Mini satellite terminals, mobile phones, tablets, and various portable devices, making it the preferred choice for power supply in outdoor travel, camping, and other multiple scenarios.
The product has undergone rigorous quality testing and meets applicable safety standards in various countries. Built in multiple protection circuits, with overcharge, overdischarge, overcurrent, short circuit, and overheating protection functions, ensuring safe and reliable use.
📦 .Product specifications and parameters
&Electrical parameters
1.Rated input:PD3.0 protocol Type-C input: 5V/3A; 9V/3A； 12V/3A； 15V/3A； 20V/2.25A (maximum power 45W)
2.Rated output:PD3.0 protocol Type-C output: 5V/3A; 9V/3A； 12V/3A； 15V/3A； 20V/2.25A (maximum power 45W).DC output: 15-21V (maximum power 65W)
3.Battery capacity:27500mAh/99Wh
4.Overvoltage protection: Input overvoltage threshold 21.25V,overcurrent protection
5.DC output overcurrent: 5A; Type-C output overcurrent: 10A
6.Overcharge/Overdischarge Protection:Battery overcharge cut-off voltage: 21.25V ± 0.05V; overdischarge cut-off voltage: 12.5V ± 0.05V
&environmental parameters
1.Working temperature: -10 ℃~60 ℃
2.Storage temperature: -20 ℃~70 ℃
3.Working humidity: 20% -85% (no condensation environment)
4.Dustproof and Waterproof Rating: IP65
&Certification Qualifications
CE certification, UL2056 mobile power safety certification, CE-EMC electromagnetic compatibility certification, RoHS environmental certification
👁️ .Product component operation instructions
1.Button Function
Short press the button to light up the TFT display screen and view various operating parameters of the device;
Press and hold the button for 3 seconds to activate the DC output;
Press and hold the button for 3 seconds to turn off the DC output.
2.Power display instructions
After the TFT screen lights up, it synchronously displays the remaining battery percentage and battery level icon;
The power consumption values displayed on the screen are for reference only.
Note: In the absence of input or output, the power supply will automatically enter sleep mode after 30 seconds.
⛰️.Function Introduction
1. Charging function
Paired with Type-C fast charging charger, it can be charged with a maximum charging power of 45W. The TFT screen automatically displays the charging status and remaining power, and the chip automatically calculates the power level.
If accurate battery display is required, it is recommended to complete three complete charge and discharge cycles. The upper limit of charging working voltage is 21.25V ± 0.05V; the cutoff current of overcharge protection is ≤ 100mA.
2. Type-C discharge function
After inserting the Type-C data cable, the device automatically recognizes and starts discharging, and the screen synchronously displays the output status.
3. DC discharge function
Press and hold the button for 3 seconds to start the DC output, and the screen will light up to display the discharge parameters; Press and hold for 3 seconds again to turn off the DC output.
After turning on the DC output, if the DC port output current cannot be detected within 30 seconds, the device will automatically turn off the DC output and enter sleep mode.
Screen partition instructions
Left: Remaining battery percentage and battery status diagram;
Top right corner: Type-C input/output status and electrical parameters;
Bottom right corner: DC output status and electrical parameters.
🛠️ Important Note:
This power supply does not support charging and discharging at the same time; When discharging the DC port, inserting the Type-C charging cable will automatically stop discharging and prioritize entering charging mode;
The DC port and Type-C port can discharge externally simultaneously.
💡 .Common faults and solutions
| Common Faults | Possible reasons | Solution |
|---|---|---|
| The power supply cannot charge | 1. The charger/data cable is damaged; 2. Poor interface contact; 3. The ambient temperature is too high/too low | 1. Replace the charger and data cable in good condition; 2. Re plug and unplug to ensure that the interface fits snugly; 3. Move to an environment between 0 ℃ and 45 ℃ before recharging |
| The power supply is unable to provide power to the device | 1. The power supply is depleted; 2. Damaged data cable and poor interface contact; 3. External device interface failure | 1. Fully charge the power supply; 2. Replace the data cable and re plug it tightly; 3. Maintenance of external equipment interfaces |
| During the charging process, the body heats up severely | 1. Charging current exceeds the standard; 2. The ambient temperature is too high; 3. Product malfunction | 1. Replace the charger with one that meets the specifications; 2. Transfer to a ventilated and cool place for charging; 3. Immediately stop using and contact customer service |
