Product Description

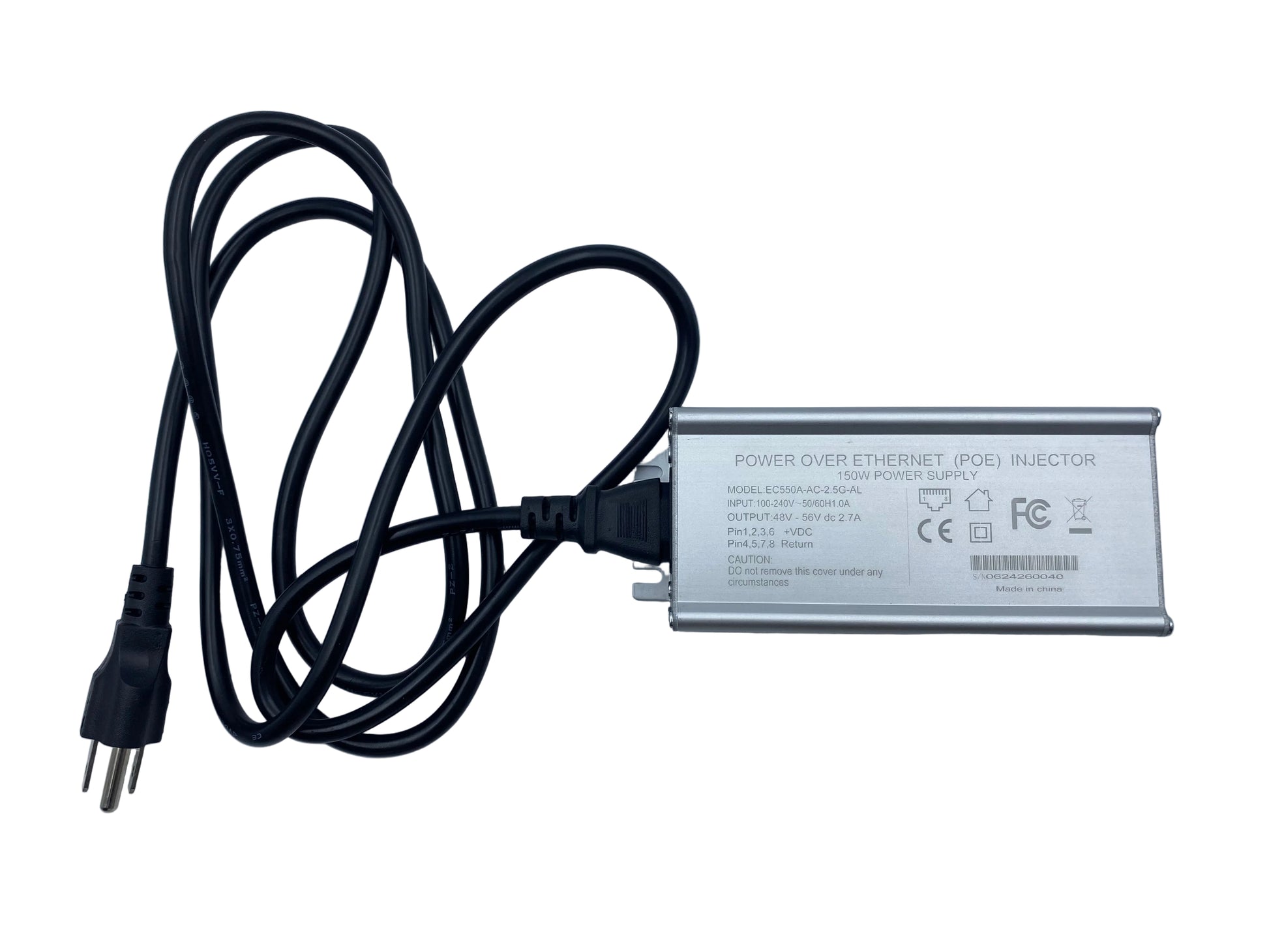

This is the EC550A-AC-2.5G-AL 150W high-power PoE injector (PoE power supply), specifically designed for use with Starlink second-generation and third-generation terminal antennas, and belongs to Ethernet powered devices.

1. Input: 100-240V wide AC power, 50/60Hz, compatible with global household electricity supply.

2. Output: 48V~56V DC, maximum 2.7A, total power 150W, supports 2.5G high-speed network port transmission.

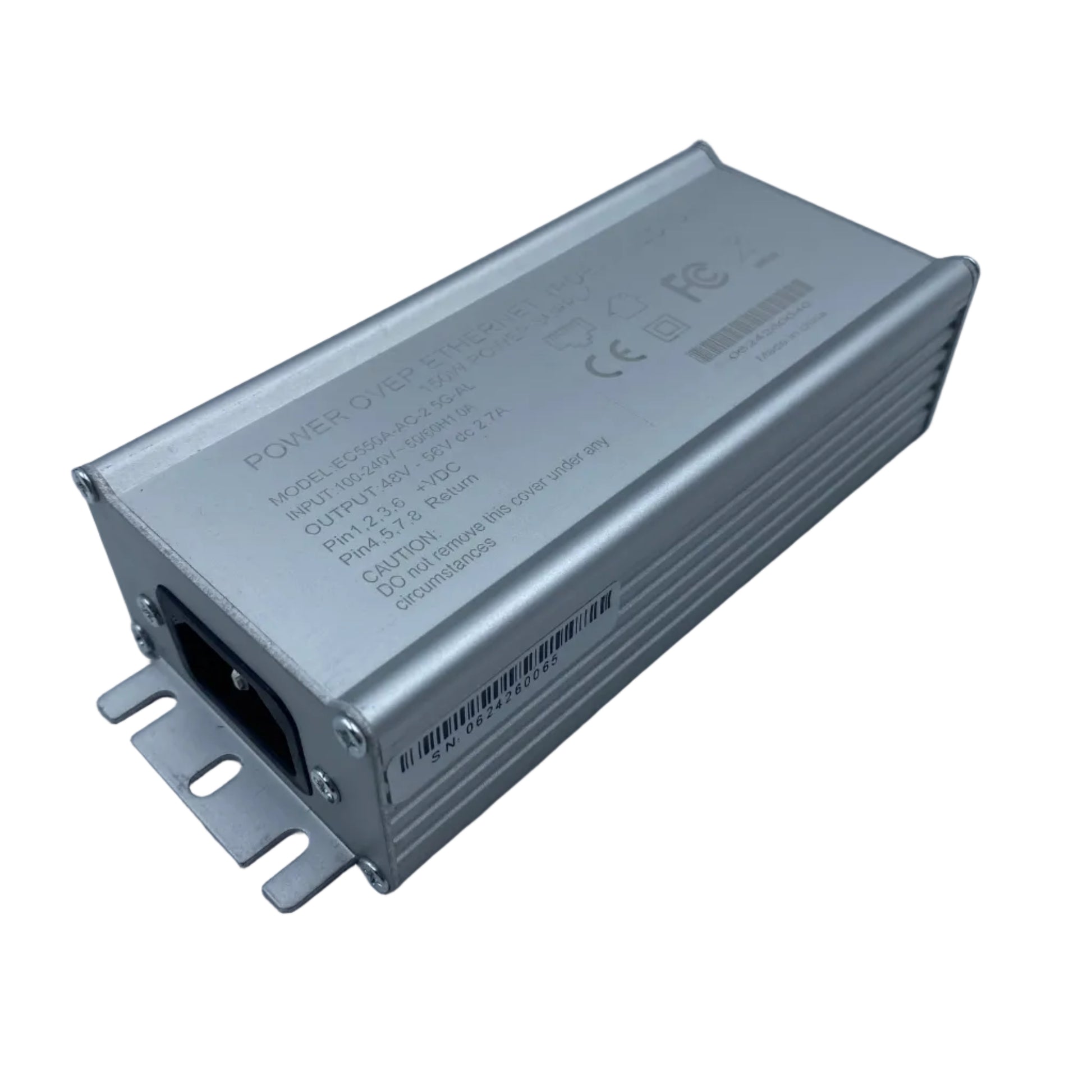

3. Power supply line sequence: 1/2/3/6 pins are for positive power supply, 4/5/7/8 pins are for loop return, which is the definition of power supply pins adapted to Starlink devices.

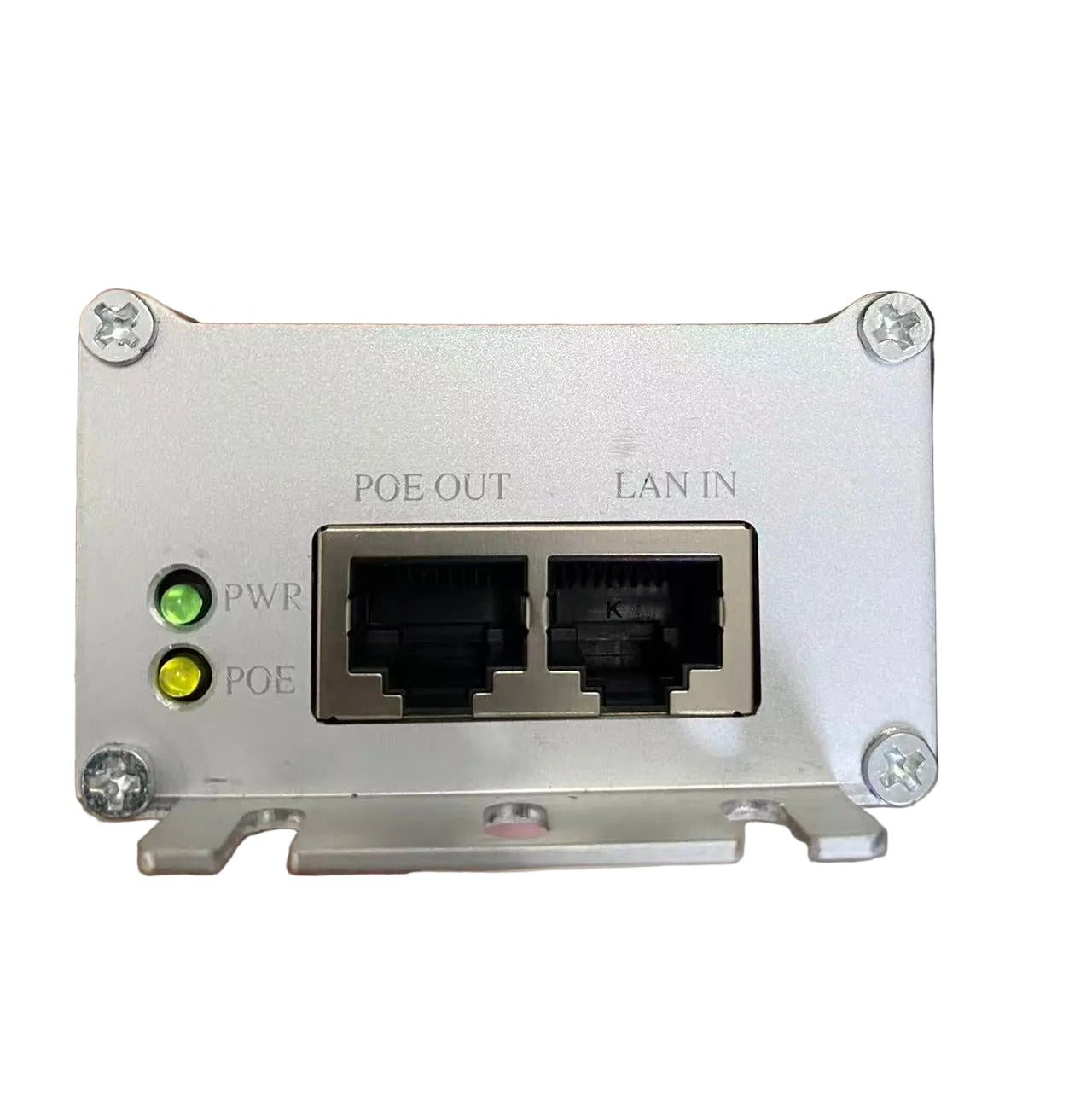

4. Interface:
-LAN IN: Connect to the network port of a regular router at home and input network signals.
-POE OUT: A single Ethernet cable simultaneously transmits network and power to the Starlink antenna.
-Equipped with built-in PWR power light and POE working status light, convenient for troubleshooting.

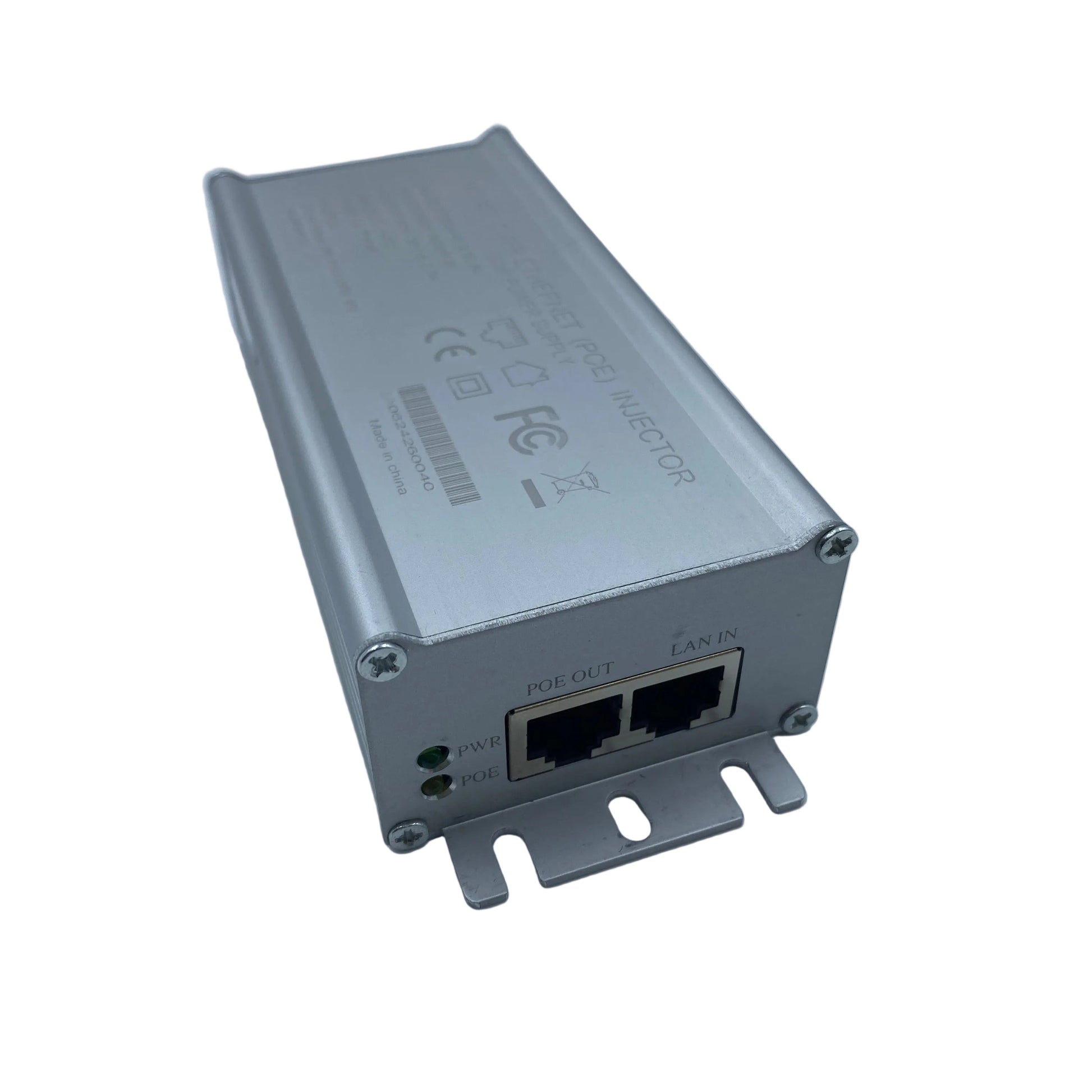

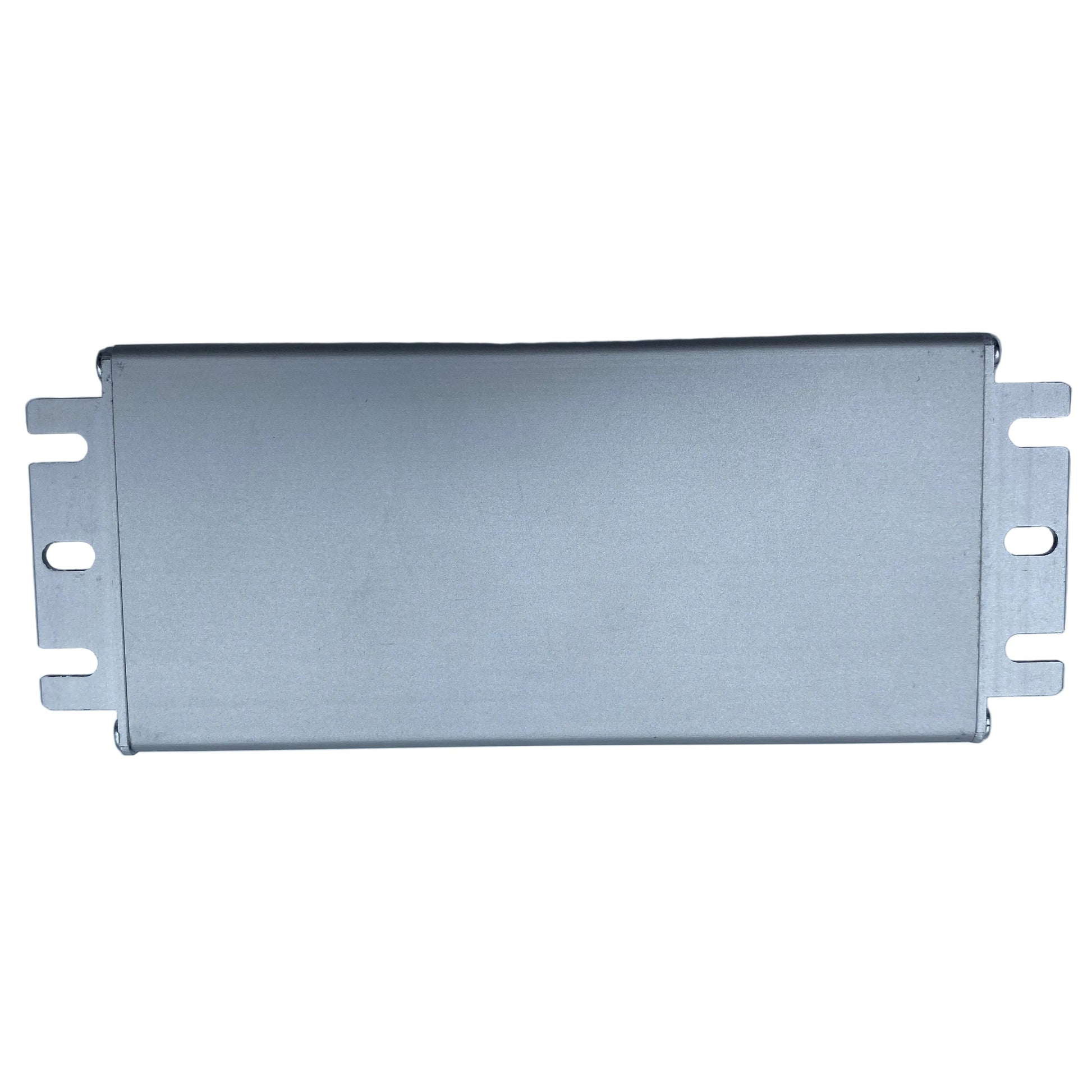

5. Passed CE and FC safety certification.Aluminum alloy metal shell, good heat dissipation performance, with installation and fixing ears, can be wall mounted and fixed.

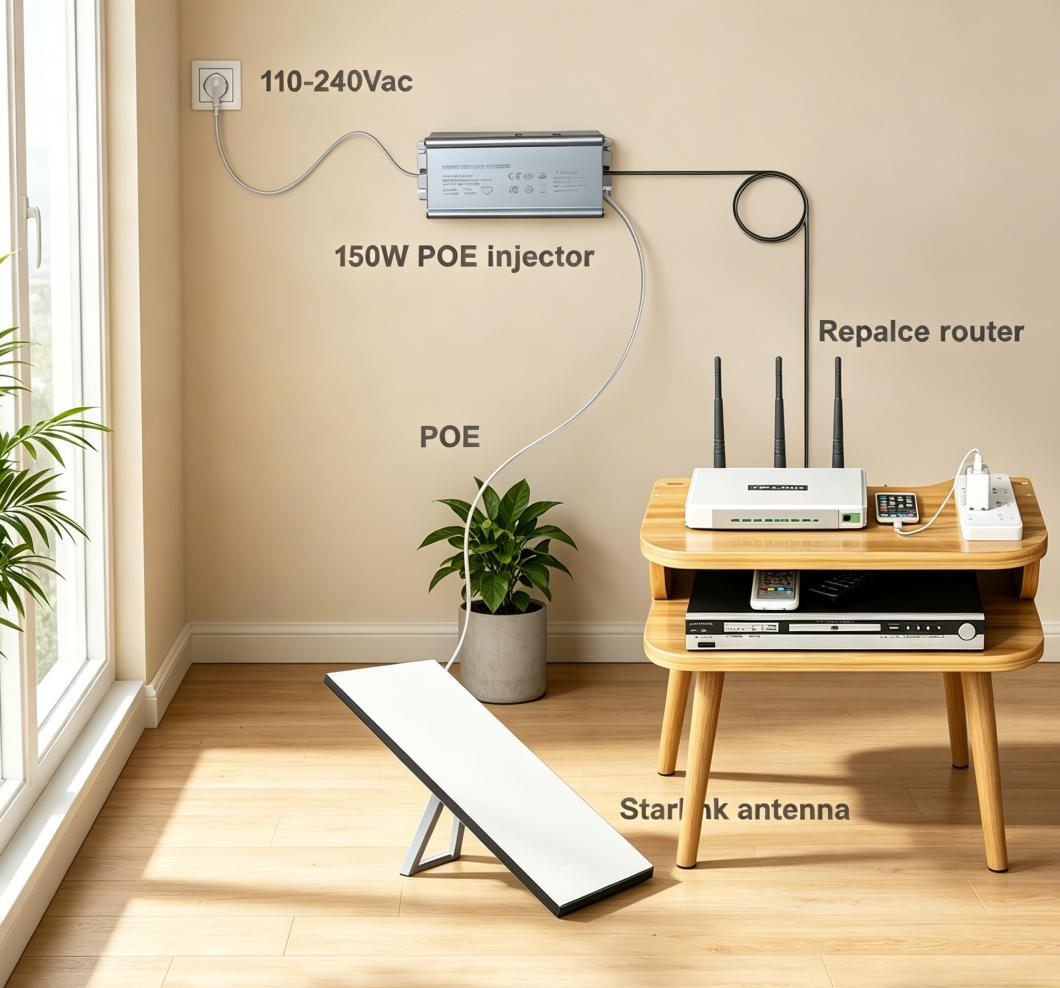

6. This PoE injector is plugged into the mains power supply. The router's Ethernet cable is connected to LAN IN, and a long Ethernet cable is pulled from POE OUT to the outdoor Starlink antenna. One Ethernet cable simultaneously transmits data and supplies power to the antenna.

7. Replace the original power supply of Starlink, with more power margin. The 2.5G network port can run the high-speed bandwidth of Starlink, and the wide voltage design is suitable for power environments in different countries and regions.
